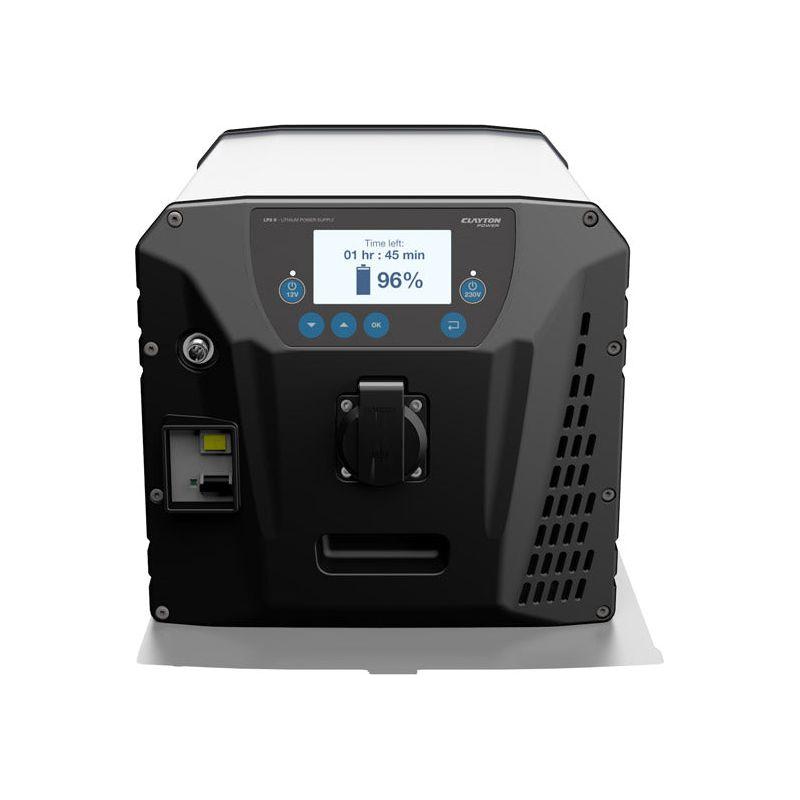

Clayton Power - LPS II 2500 - 1 kWh

The Clayton Power LPS II 2500 – 1 kWh is a compact, all-in-one lithium power supply designed to deliver reliable 230V AC and 12V DC power wherever you need it. Ideal for campervans, boats, service vehicles, and off-grid applications, this unit combines a high-capacity LiFePO₄ battery, pure sine wave inverter, and intelligent charging system into a single, user-friendly solution.

Key Features

• Integrated 1 kWh LiFePO₄ Battery: Built-in 100Ah (1320Wh) lithium battery offers up to 2000 charge cycles, ensuring long-term performance and reliability.

• Dual Voltage Output:

  • 230V AC Output: Delivers continuous 2500W power, with a peak of 4000W, suitable for running household appliances and power tools.

  • 12V DC Output: Provides continuous 180A, with a peak of 270A for 60 seconds, perfect for 12V devices and systems.

• Versatile Charging Options:

  • Mains Charging: 750W input for rapid recharging from standard outlets.

  • Alternator Charging: 500W input allows charging while on the move; optional supercharger increases this to 1000W.

  • Solar Charging: 400W input via built-in MPPT solar charge controller.

• Compact and Lightweight: Weighing only 23.5 kg, the LPS II 2500 is significantly lighter than traditional power setups, saving space and reducing vehicle load.

• User-Friendly Interface: Front panel controls and display provide easy access to system status, output controls, and charging information.

• Safety Features: Includes an RCBO relay for overload protection and complies with international safety standards, ensuring peace of mind during operation.

Specifications

• Model: LPS2 2512-100

• Battery Type: LiFePO₄ (Lithium Iron Phosphate)

• Battery Capacity: 100Ah (1320Wh)

• AC Output:

  • Voltage: 230V ±10%

  • Frequency: 50 Hz

  • Continuous Power: 2500W

  • Peak Power: 4000W

• DC Output:

  • Voltage: 10–14.4V

  • Continuous Current: 180A

  • Peak Current (60s): 270A

• Charging Inputs:

  • Mains: 750W

  • Alternator: 500W (1000W with supercharger)

  • Solar Panels: 400W

• Dimensions (HxWxL): 256 x 277 x 409 mm

• Weight: 23.5 kg

• Operating Temperature: -20°C to 50°C

• IP Rating: IP21

Applications

• Campervans & Motorhomes: Power your adventures with reliable energy for appliances, lighting, and electronics.

• Marine Vessels: Ensure uninterrupted power supply for navigation systems, lighting, and onboard equipment.

• Service Vehicles: Operate tools and equipment efficiently on the go.

• Off-Grid Cabins: Maintain comfort and functionality in remote locations without grid access.
