CESFONJER 16 PCS RO Water Filter Fitting, 3/8'' Push fit Connectors for Water Pipe, Push in to Connect Water Tube Fitting Set (Y+T+I+L Type Combo + Shut-Off Valve)
POLITE NOTICE:
THIS PRODUCT IS NOT IN OUR STOCK, IT WILL BE DELIVERED IN SEPARATE PARCEL(S) BY ONE OF OUR PARTNERS IN 2-4 WORKING DAYS
Please check the Policy before you proceed: CLICK/TAP HERE
Thank you for choosing CESFONJER 3/8'' water purifier accessories !
More Information About CESFONJER 3/8'' water purifier accessories!
- Using POM material, hard texture, good anti-aging performance. Oil-resistant sealing ring does not change shape after 100,000 insertions and unplugging, and does not leak water.
- Operated by hand, it replace threaded or flanged connections, which require wrenches.
- It is used to branch off to different outlets for your RO unit.
- The water faucet adopts push-fit technology, which allows you to quickly disconnect the connection without using any tools. Simple operation, fast installation, and time saving. Very convenient and efficient.
- The head of the plastic water filter fitting has a blue buckle, its function is to better to fix the water pipe, so that the water pipe will not fall off easily. Its can make the pipe and the interface can be connected more closely to prevent water leakage.
- 100% Safety food grade material, 100% leak free, 100% Re-useable
- it is widely used in reverse osmosis machines, water purifiers, direct drinking machines, Water dispenser, water dispenser, etc.

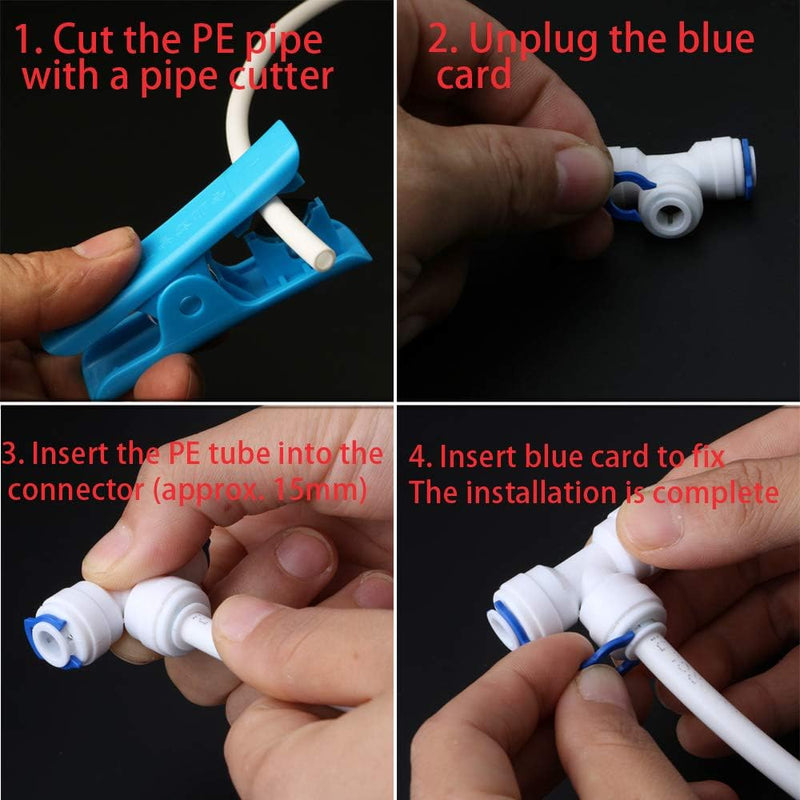

Installation Method
|
|
|
|
|
|---|---|---|---|
|
The PE pipe needs to be carefully cut with a pipe cutter to ensure that cut is flat; |
Unplug the blue card; |
Insert the PE tube into the connector(approx.15-18mm); |
Insert blue card to fix .The installation is complete. |

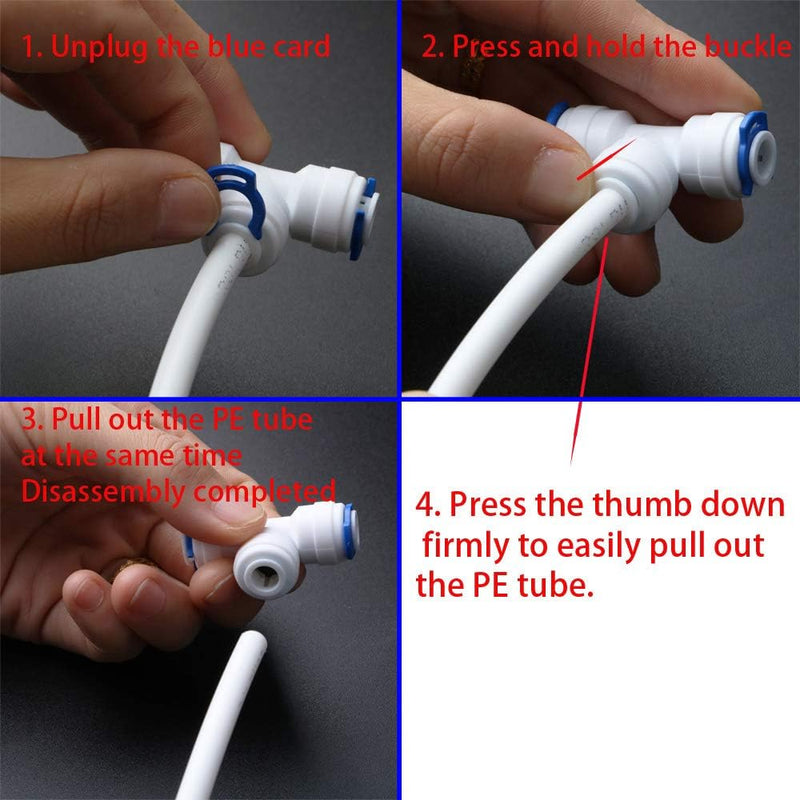

Disassembly Method
|
|
|
|
|---|---|---|
|
Unplug the blue card; |
Press and hold the buckle; |
Pull out the PE tube at the same time.Disassembly completed |
Product features
|
|
|
|
|
|---|---|---|---|
|
Fits 3/8 inch OD tubing on most RO systems.(Hose and "C" clips are not included in this product kit.) |
|

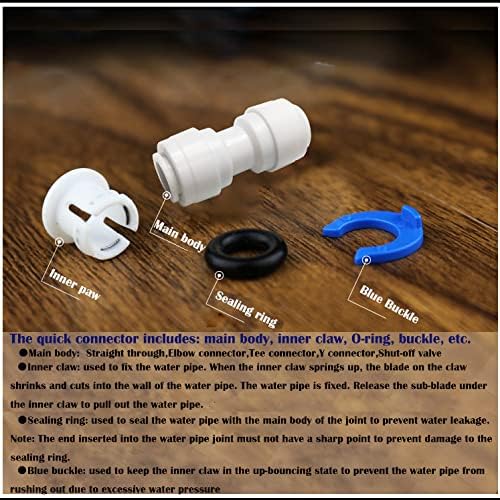

The quick connector includes: main body, inner claw, O-ring, buckle, etc. Main body: straight through,elbow connector,tee connector,Y connector,shut-off valve. Inner claw: used to fix the water pipe. When the inner claw springs up, the blade on the claw shrinks and cuts into the wall of the water pipe. The water pipe is fixed. Release the sub-blade under the inner claw to pull out the water pipe. Sealing ring: used to seal the water pipe with the main body of the joint to prevent water leakage. Note: The end inserted into the water pipe joint must not have a sharp point to prevent damage to the sealing ring. Blue buckle: used to keep the inner claw in the up-bouncing state to prevent the water pipe from rushing out due to excessive water pressure |

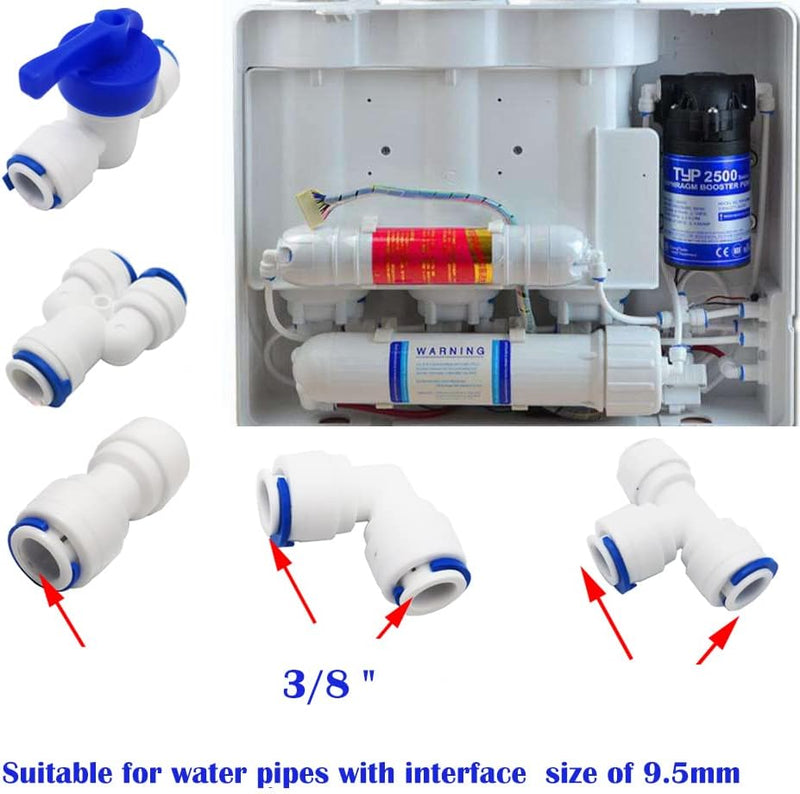

Suitable for RO system beverage dispensing,water purifiers, pure water machines, direct drinking fountains, wading appliances |
Precautions
Specification:
Material: POM
Color: white, blue

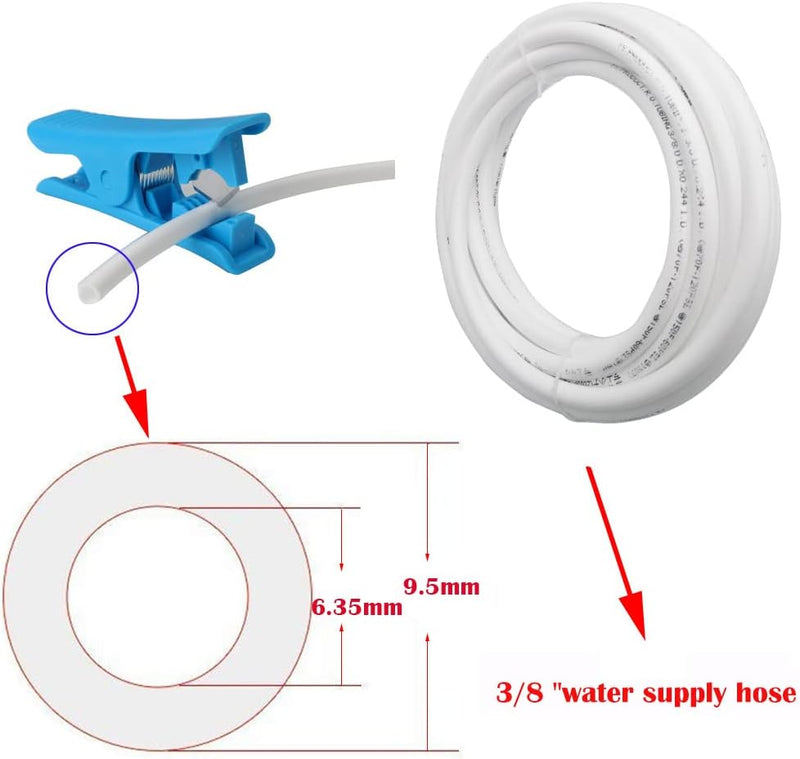

Water pipe interface size: 9.5mm
Maximum tolerance water pressure:20bar/40KG

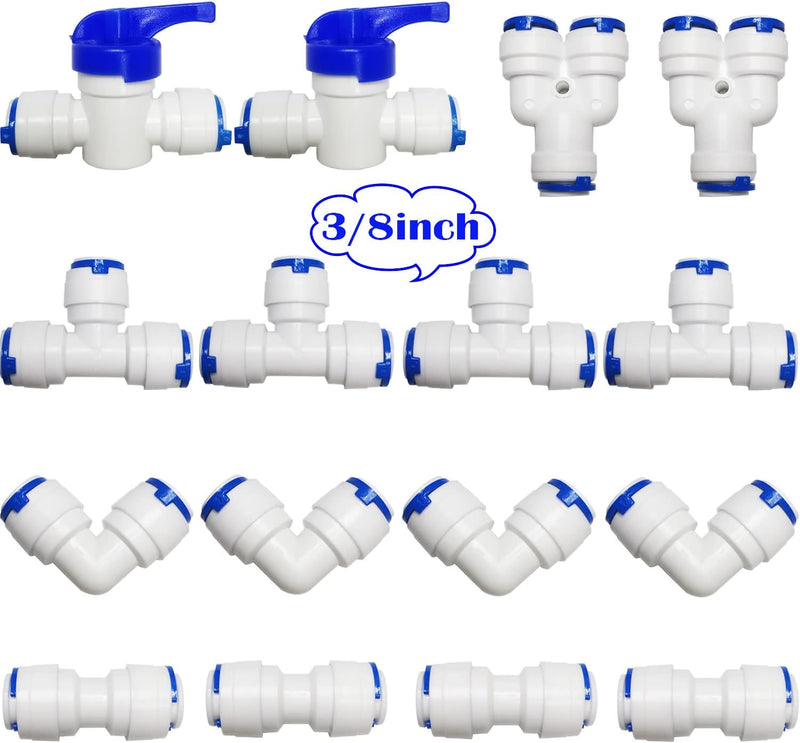

Package content
2 x 3/8"Y type water filter fitting
4 x 3/8"T type water filter fitting
4 x 3/8" I type water filter fitting
4 x 3/8" L type water filter fitting
2 x 3/8"shut off valve
The above are all manual measurements, there are errors (1-5mm)
- △----Using POM material, hard texture, good anti-aging performance. Oil-resistant sealing ring does not change shape after 100,000 insertions and unplugging, and does not leak water.100% Safety food grade material, 100% leak free, 100% Re-useable
- △-----Package includes 2 pcs 3/8" Y type water filter fitting, 4 pcs 3/8" T type water filter fitting, 4pcs 3/8" I type water filter fitting, 4pcs, 3/8" L type water filter fitting, 2pcs 3/8" shut off valve. Sufficient quantities can meet your different demands.
- △-----Push fit fittings, Quick Connect Fitting 3/8"RO Water System.water pipe interface size: 9.5mm.
- △-----No additional tools required for quick and easy connection and disconnection
- △----Suitable for RO system beverage dispensing,water purifiers, pure water machines, direct drinking fountains, wading appliances
| Material | Plastic |
| Brand | CESFONJER |
| Colour | White, Blue |
| Connector type | Flange |
| Thread size | 0.375 inch |
| Thread type | UN |
| Number of pieces | 2, 4 |
